Brewery Copper Heater Range

Our Brewery Copper Heater Range is for those who bring Happiness and Hangovers to us all. Cheers, Yamas, Sláinte, Kanpai, Proost, Gan bei, Iechyd da, Skål, Sei gesund,  Na zdrowie, Zum wohl, À votre santé, Gesondheid, Na zdravi!

Buy brewery immersion heaters

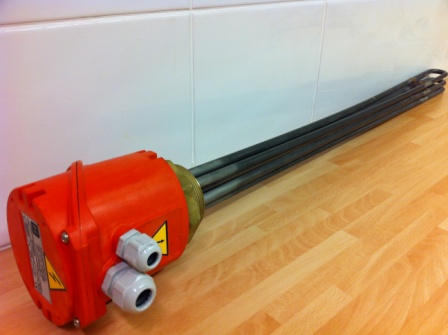

I have been saying the same to folks for years now, Breweries really are my favourite customers, & our BI Range of Brewery Immersion Heaters is designed specifically with your cleaning needs in mind, and feature:

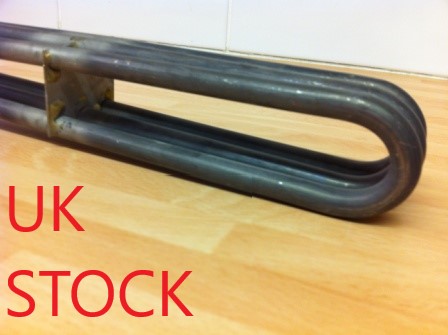

  • Well spaced elements which are only U bent, to allow good access for cleaning, see images.
  • UK Stock of Italian manufactured heaters
  • Available as 3kW, 6kW, 9kW, 12kW, 18kW, see below for specifics.
  • Terminal box 120mm deep, 120x100mm oval.
  • ABS IP65 terminal enclosure rotateable through 360 degrees.
  • 415v busbarred by default, 3 & 6kW can be reconfigured to 240v single phase if required.
  • 2.25″ BSP Brass Screwplug.

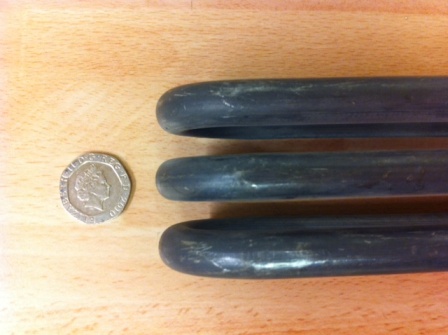

  • 10mm diameter Incoloy 800 elements.
  • complete with 18″ thermowell.
  • Busbar reconfigurable single phase oil immersion heaters. 18kW becomes a 2kW oil heater at 7.6w/in²

Next Steps.

Ring Jamie on 01827 215684 to discuss your needs. Having spoken to dozens of brewers, through the feats times and the famine of lockdowns , we have learned that everybody’s applications and needs are different. Some aspects of the process are common, such as the need to get water from one part of your process at 70ºC, up to the boil as quickly as possible. This demand for kW of power is usually balanced with a maximum immersed length of about 1m. The more element we can squeeze into the available space, the more we are able to reduce the watt density of the elements. Have a look at our Blog entry, in which I have tried to explain the importance of watt density and its relevance when choosing and using a brewery immersion heater.

Brewery Copper Heater Hopefuly Useful Information

We understand your need to get water from one part of your process at 70ºC, up to the boil as quickly as possible. Therefore this demand for lots of power needs to be balanced with a maximum immersed length of about 1m. The more element we can squeeze into the available space, the more we are able to reduce the watt density of the elements. Therefore, it may be worth having a look at our Blog entry, in which I have tried to explain the importance of watt density and its relevance when choosing and using a brewery immersion heater.

On our blog, ElementsOfHeating there is a wealth of relevant and useful information, such as an explanation of what a heating element actually is. And my best punt at explaining the joys of watt density, and it’s crucial importance when choosing the most appropriate heating elements for water, oil, and breweries. Generally speaking, soft water, if you can find it, or indeed soften it with one of these, is good up to 80 w/in². Hard water, which is most of us, needs to be at or below 40 w/in², otherwise the magnesium & calcium sticks to the element, preventing heat dissipation, encouraging even more sh1t to stick, eventually killing the element. Light oils, such as cooking & seed oils, are ok at 25 w/in², but heavy industrial oils will need to be down at 12 w/in². Simply put, you need more element in the available space.

Brewery Copper Heater – Useful Stuff.

On this site, you will not only find an online catalogue of our core range of products. You’ll find tips, advice and guidance. And links to other resources to make your life easier, including our heating calculators.

On our blog, ElementsOfHeating there is a wealth of relevant and useful information, such as an explanation of what a heating element actually is. Also we have a full description and explanation of the component parts of a screwed immersion heater and my best punt at explaining the joys of watt density, and it’s crucial importance when choosing the most appropriate immersion heater for water, oil, and breweries. Also available is an informational entry about the process we go through when designing immersion heaters generally.

YouTube Channel.

On our YouTube channel we have videos showing how to wire an immersion heater



…an explanation of what a heating element is

..as well as this 2 minute explanation of what an immersion heater is.

Sidetracked onto our Sister Site?

If you now realise that what you are in fact searching for is a Heating Element, as opposed to an Immersion Heater, you have two options. You can stay on this website, research Heating Elements, find what you need, & then call Jamie on 01827 215684.

Or you can go to our sister site, HeatingElements.co.uk where you will find additional information, exampled below, and you are able to buy online, should you wish to avoid a long telephone conversation with Jamie, about Life, the Universe & Everything. Or perhaps you love banks & their 2% charges. I don’t. So please call Jamie on 01827 215684.

The more “Wiggle Room” you have in terms of power rating & length, then the more likely we are to be able to find something on the shelf. In stock, makes the process both quicker & easier. If elements are required STRAIGHT or NARROW U BENT (ie, <=50mm fixing centres) then lengths will have to be close enuf. But if we can squeeze in a W shaped element then this allows the “middle leg” to vary according to what lengths are available on the shelf. Likewise, if you can be flexible on power rating, we may not have sufficient 1000w elements to hand, but if you could take 1250w, 1333w, or perhaps 750w, then we are better able to accommodate your needs quickly & cost efficiently.

Brewery Copper Heater – Even more Useful Stuff.

BSP Screwplug sizing causes much consternation, so click here for the full shilling BlogPost on ElementsOfHeating, but hopefully this suffices for most –

BSP” ⌀ ACROSS
THREAD”
INTERNAL
BOSS mm
EXTERNAL
SCREWPLUG mm
Circumference
mm
0.25” 0.518     41
1/2 0.825     66
5/8 0.902     72
3/4 1.041     83
7/8 1.189     95
1 1.309     104
1 & 1/4 1.650 39.5 41.5 131
1 & 1/2 1.882 44.8 47.7 150
1 & 3/4 2.116 51.2 53.5 168
2 2.347 57.5 59.2 187.2
2 &1/4 2.537 62.5 65.4 206.4
2 & 1/2 2.95 72.4 74.9 236.2

We hope you find the site intuitive & easy to use. If you have any suggestions, feedback or cor
