Description

Cotherm TSD01106 Thermostat – 280mm Stem, 20AMP

A Cotherm TSD01106 adjustable control thermostat with a range of approximately 5°C – 80°C.

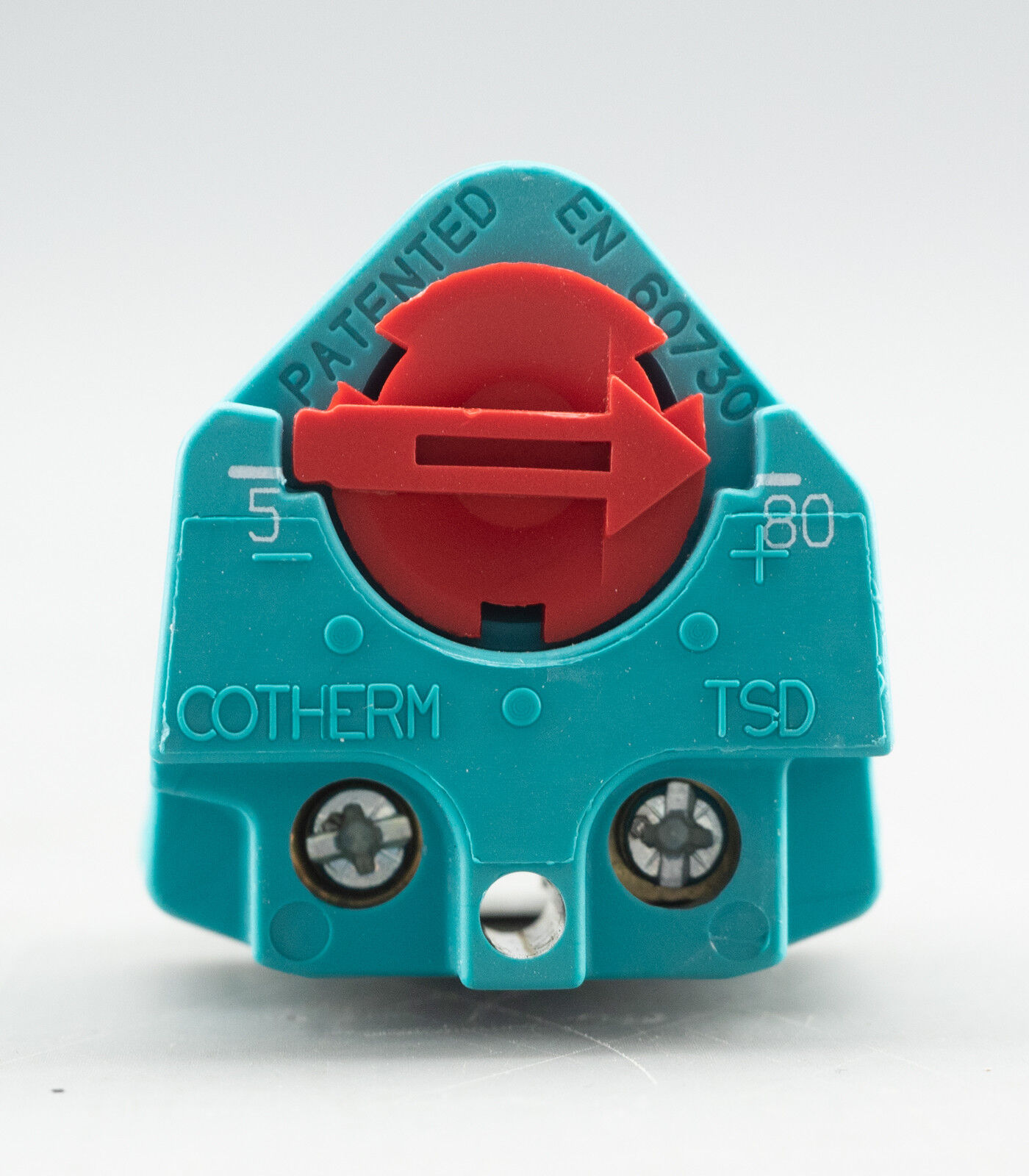

TSD01107-HEAD

TSD01107-LENGTH

T-10-65 TSD0110-SIDE

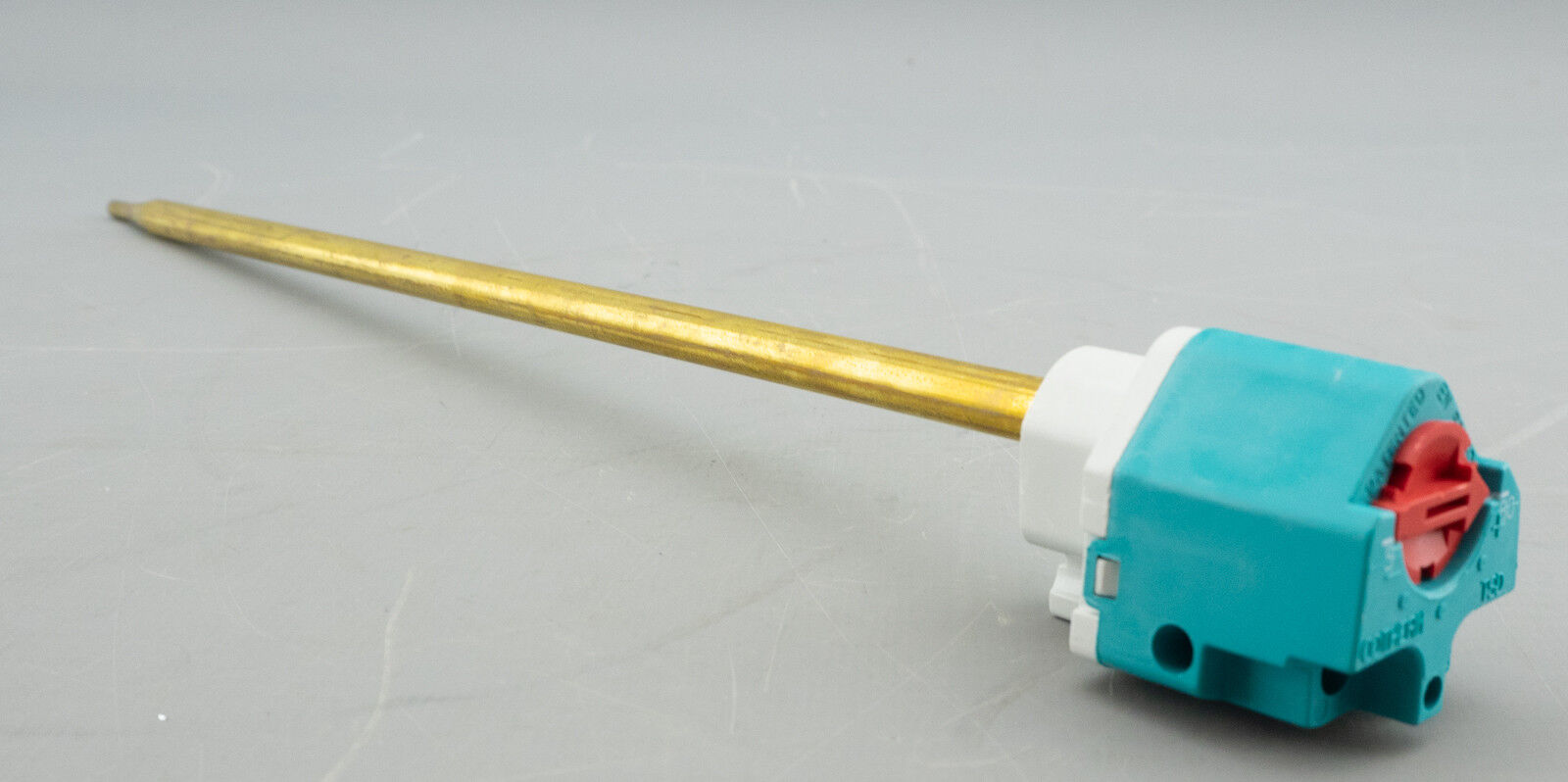

The TSD01106 is a rod thermostat with single pole break-on-rise action rated at  20A 240v.  The stem (rod) is 265mm long and 7.5mm in diameter making suitable for use in all standard 280mm x 8mm (11″ x 5/16″) thermostat pockets.  It is ideal for use in commercial products for direct control of single phase loads up to 3kW or to operate a contactor for higher loads or three phase applications.

Note: This device does not include a safety cut-out and is only designed to control the water temperature.

This thermostat is NOT SUITABLE for DOMESTIC without there bring an additional a safety cut-out as required by law.

If you’d like an immersion heater to put the stat in, you will find our Industrial Immersion Range more than adequate.
