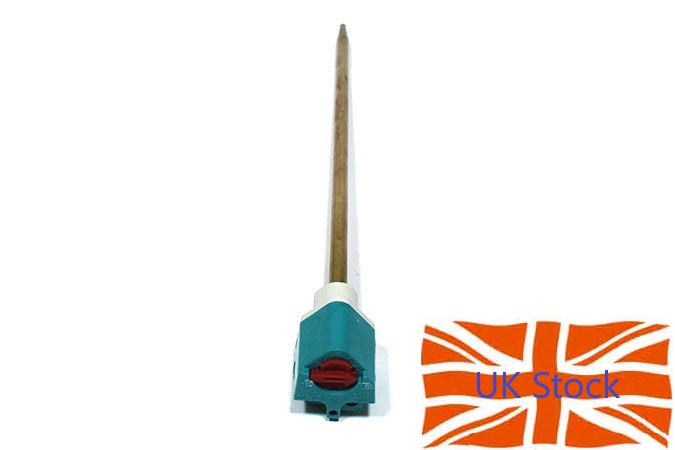

Cotherm TSD01109 T-10to65
Cotherm TSD01109 11” ROD STAT 20 amp -10 TO 65°C (+/-5°c) suitable for frost protection
A Cotherm TSD01109 adjustable control thermostat with a range of approximately -10 to 65°C.

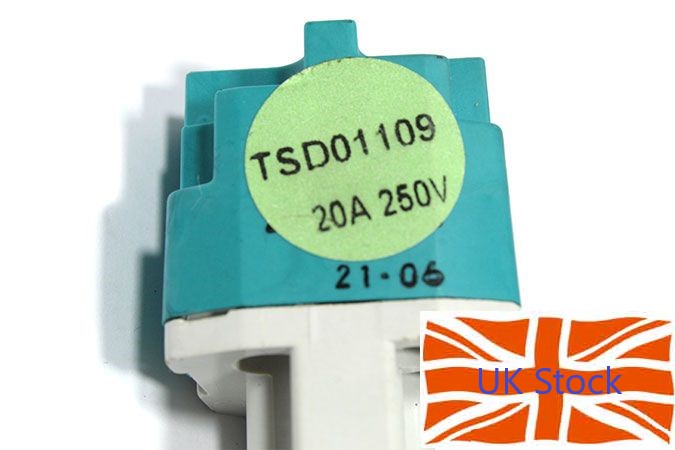

The Cotherm TSD01109 is a rod thermostat with single pole break-on-rise action rated at 20A 240v. The stem (rod) is 265mm long and 7.5mm in diameter making suitable for use in all standard 280mm x 8mm (11″ x 5/16″) thermostat pockets. It is ideal for use in commercial products for direct control of single phase loads up to 3kW or to operate a contactor for higher loads or three phase applications.
Note: This device does not include a safety cut-out and is only designed to control the water temperature.
This thermostat is NOT SUITABLE for DOMESTIC without there bring an additional a safety cut-out as required by law.
Stat diameter ⌀ is 7.5mm so as to fit snugly in an 8mm Thermowell or Stat Pocket.
If you’d like a nice immersion heater to put the stat in, you will find our Industrial Immersion Range more than adequate.
If you want heating elements, click here to visit our sister site, HeatingElements.co.uk or call Jamie on 07897 246 779. I like a chat & am amenable to discounts for good people. So, talk to me.
